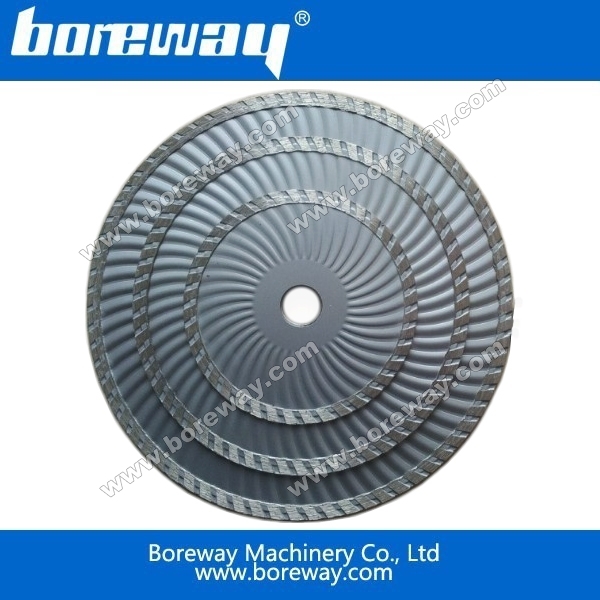

Boreway diamond sintered continuous turbo waved blades
- Model Number: BW-DSCTWB-001
- Type: Wet Use
- Diameter: 105mm to 229mm
- Segment Width: 2.0mm to 2.8mm
- Segment Height: 8mm
- Inner hole: 16mm or 20mm or 22.23mm or 25.4mm or 50mm
- Applications: Boreway diamond sintered continuous turbo waved blade is wet use for cutting marble granite porcelain and tiles.
- Machine: Hand-held machine and other cutting machine.
- Industry: Diamond cutting tools
- Welding method: Sintered welding
- Advantage: Good sharpness and long lifespan.
Introduction:
These diamond sintered continuous turbo waved blades are used on manual hand held cutting
machines for cutting and nondestructive grooving on marble,granite,ceramic tile,concrete and
many other general construction materials.
Features:
1.Universal dry or wet cutting blade.
2.The wave steel core improves blade rigidity,reduce friction,avoids wobbling during cutting
and is better removal of filings.
3.Turbo teeth offer fast and smooth cutting,high performance/price ratio.
Specifications:
The followings are the normal specifications of our diamond sintered continuous turbo waved blades:
|
Product Name |
Outer Diameter |
Segment Width |
Arbor |
Segment Height |
Applications |
||
|
Diamond Sintered Continuous Turbo Waved Blade |
inches |
mm |
inches |
mm |
mm |
mm |
Marble Granite Porcelain Tiles |
|
4’’ |
105 |
0.070’’ |
2.0 |
16/20 22.23 25.4/50 |
8mm |
||
|
5’’ |
127 |
0.080’’ |
2.2 |
8mm |
|||
|
7’’ |
178 |
0.095’’ |
2.4 |
8mm |
|||
|
9’’ |
229 |
0.110’’ |
2.8 |
8mm |
|||
The above specifications are for reference, other specifications can be ordered by customers.
Note: These blades process wide turbo teeth and narrow turbo teeth and may be with flange.
Grade: Premium,Standard.
