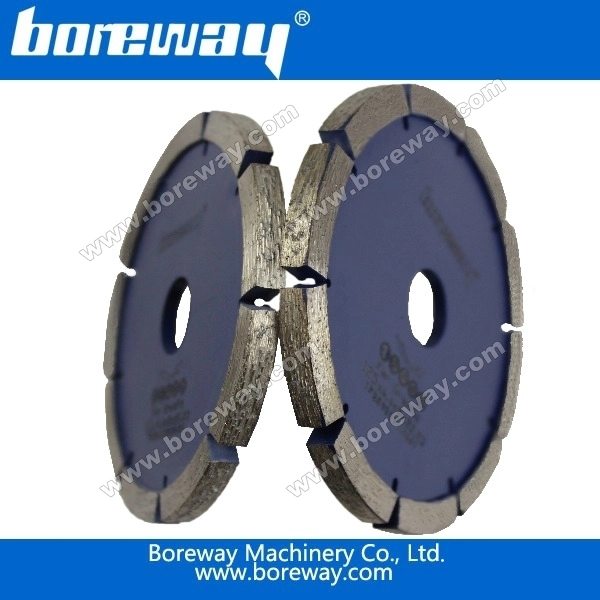

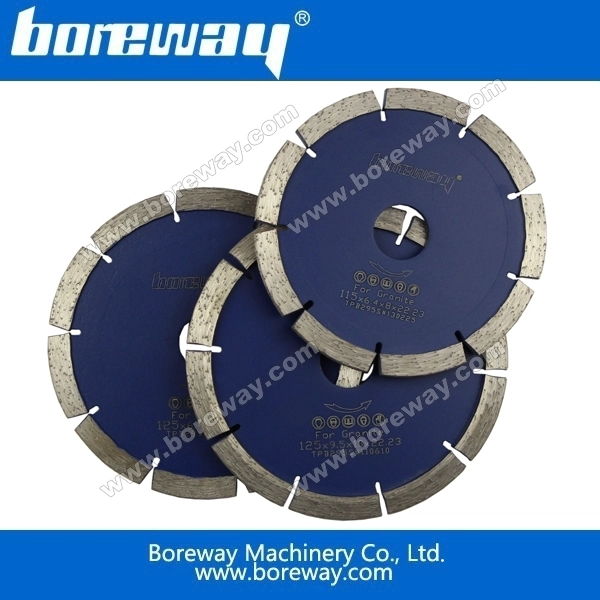

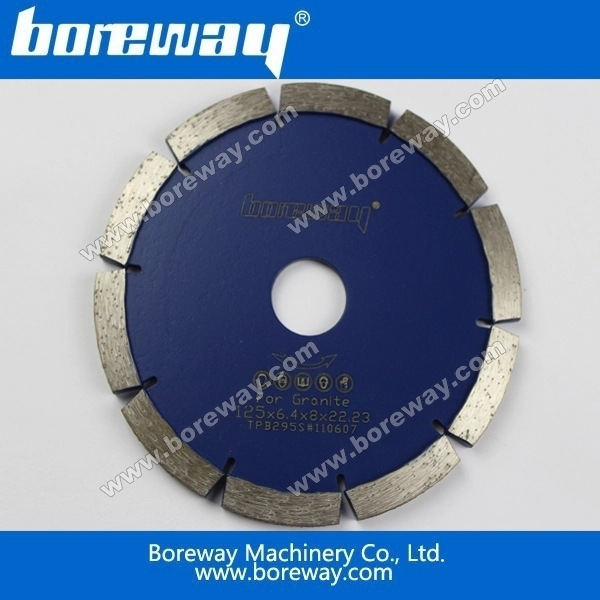

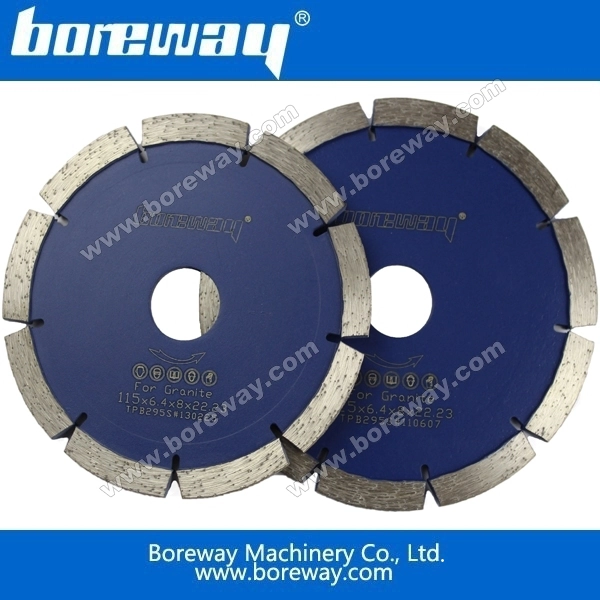

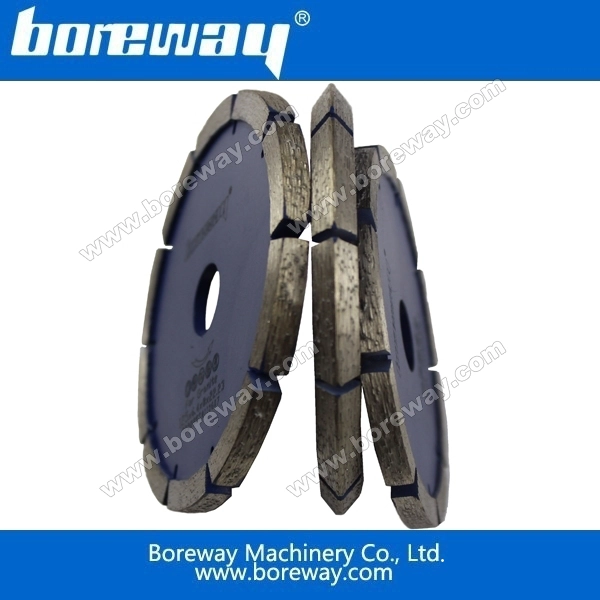

Boreway diamond segmented tuck point blades
- Model Number: BW-DSTPD-001
- Type: Wet Use
- Diameter: 105mm to 229mm
- Segment Width: 6.4mm
- Segment Height: 8mm
- Segment number: 8 to 18
- Machine: Cutting machine.
- Industry: Diamond cutting tools
- Technology: Sintered
- Advantage: Good sharpness and long lifespan.
- Applications: Boreway diamond segmented tuck point blades is wet use for cutting green concrete joint of brick or block and masonry etc.
Introduction:
These diamond segmented tuck point blades are mainly used for making grooves on the surface of green concrete,masonry,joints of brick or block and other construction materials,and repairing grout,cleaning and routing cement mortar joints.
Features:
1.Universal dry or wet cutting tuck point blades.
2.Higher diamond concentration than standard grade for fast cutting and long service life.
3.Fast and smooth cutting,high performance.
Specifications:
The followings are the normal specifications of our diamond segmented tuck point blades:
|
Produc Name |
Outer Diameter |
Segment Width |
Arbor |
Segment Height |
Segment Number |
Applications |
||
|
Diamond Segmented Tuck Point Blade |
inches |
mm |
inches |
mm |
mm |
mm |
pcs |
Concrete Masonry Ceramic |
|
4’’ |
105 |
0.250’’ |
6.4 |
16/20 22.23 25.4/50 |
8 |
8 |
||
|
4.5’’ |
115 |
0.250’’ |
6.4 |
8 |
8 |
|||
|
5’’ |
127 |
0.250’’ |
6.4 |
8 |
10 |
|||
|
6’’ |
152 |
0.250’’ |
6.4 |
8 |
12 |
|||
|
7’’ |
178 |
0.250’’ |
6.4 |
8 |
14 |
|||
|
8’’ |
203 |
0.250’’ |
6.4 |
8 |
16 |
|||
|
9’’ |
229 |
0.250’’ |
6.4 |
8 |
18 |
|||
The above specifications are for reference, other specifications can be ordered by customers.
