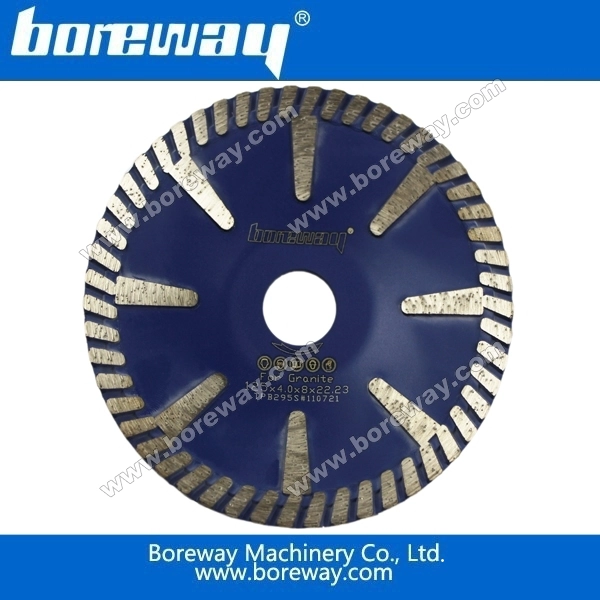

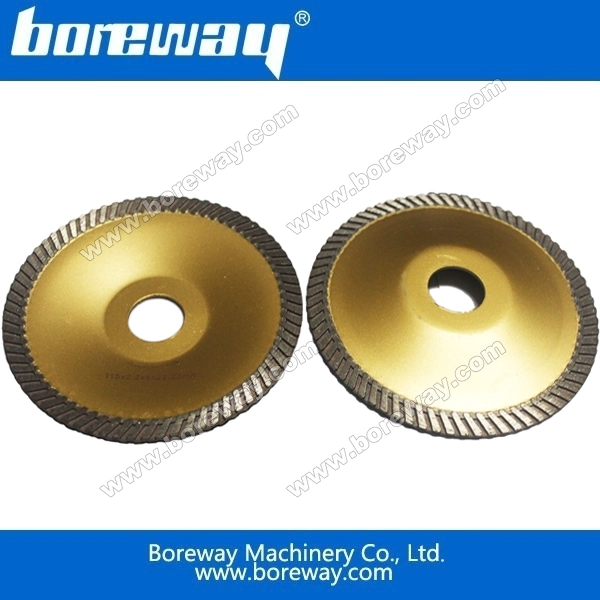

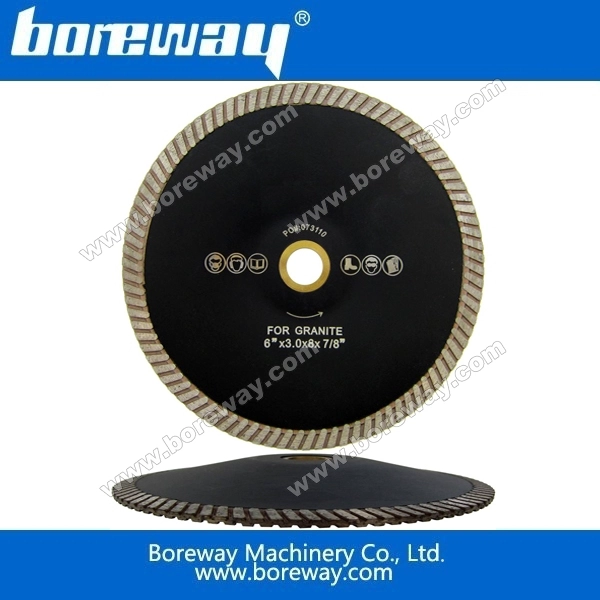

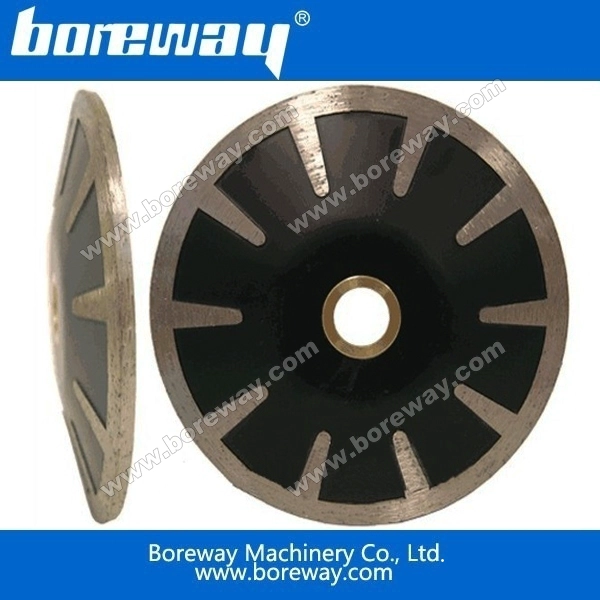

Boreway diamond concave saw blades
- Model Number: BW-DCSB-001
- Type: Wet or dry Use
- Diameter: 105mm to 180mm
- Segment Height: 8mm
- Arbor: 22.23mm or 25.4mm
- Machine: Bridge cutting machine, manual handling cutting machine
- Industry: Diamond cutting tools
- Advantage: Good sharpness and Long lifespan.
- Applications: Boreway diamond concave saw blade is wet use for cutting masonry,ceramic and concrete etc.
Introduction:
Diamond concave saw blades also named diamond convex saw blades are used on angle grinders or other small cutting machines for cutting circles or curved line on the stone slabs and countertops. The protection teeth provide faster cutting on kinds of hard stones. Hot sintered and cold pressed concave saw blades are both available.
Features:
1. Dry and wet use are both available.
2. Unique design of protection segments provide faster cutting and longer lifespan.
3. High cutting efficiency and stable performance.
Specifications:
The followings are the normal specifications of our diamond concave saw blades:
|
Product Name |
Outer Diameter |
Segment Type |
Segment Height |
Arbor |
Applications |
|
|
Diamond Concave Saw Blade |
4’’ |
105mm |
T Segmented Turbo Segment Continuous Rim |
8mm |
22.23mm
25.4mm |
Masonry Ceramic Concrete etc. |
|
5’’ |
125mm |
8mm |
||||
|
6’’ |
150mm |
8mm |
||||
|
7’’ |
180mm |
8mm |
||||
The above specifications are for reference, other specifications can be ordered by customers.
