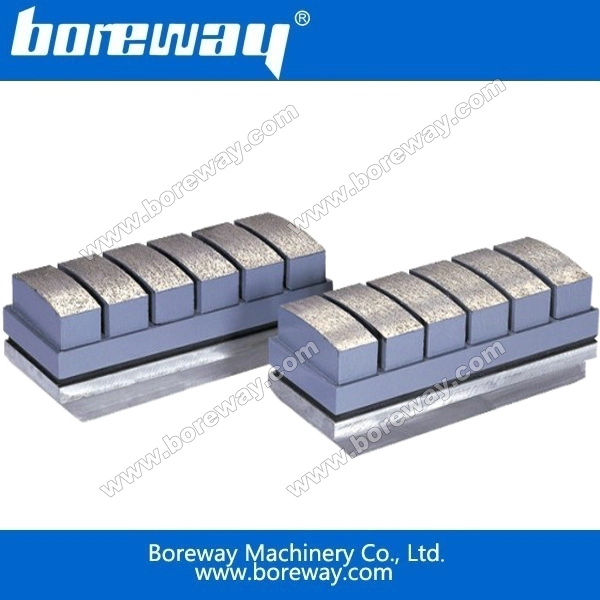

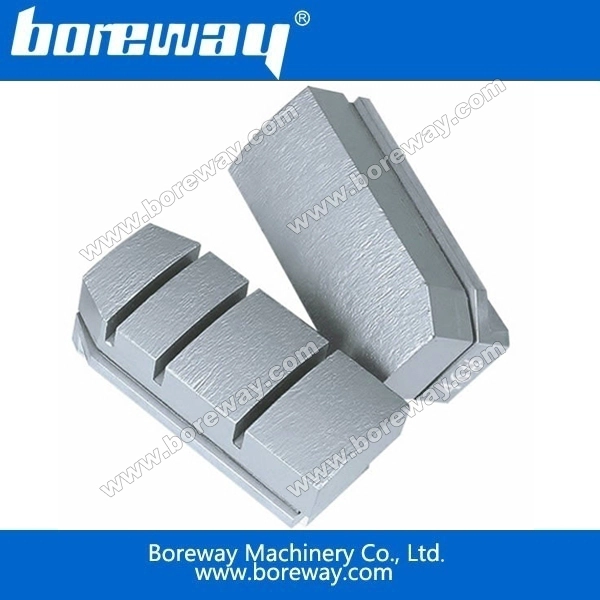

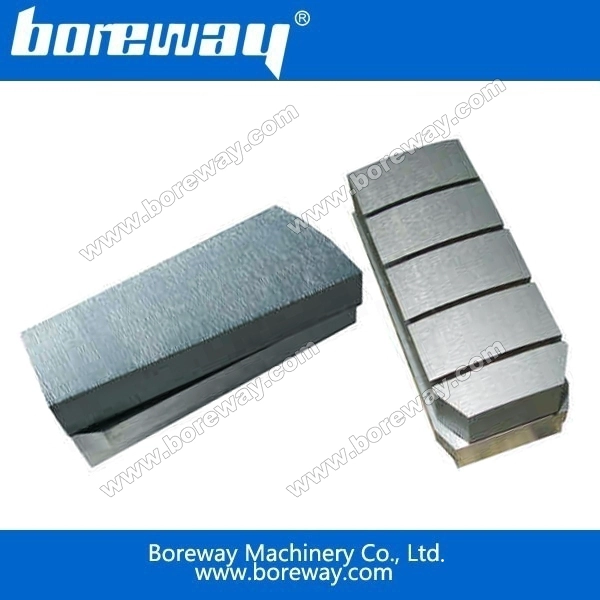

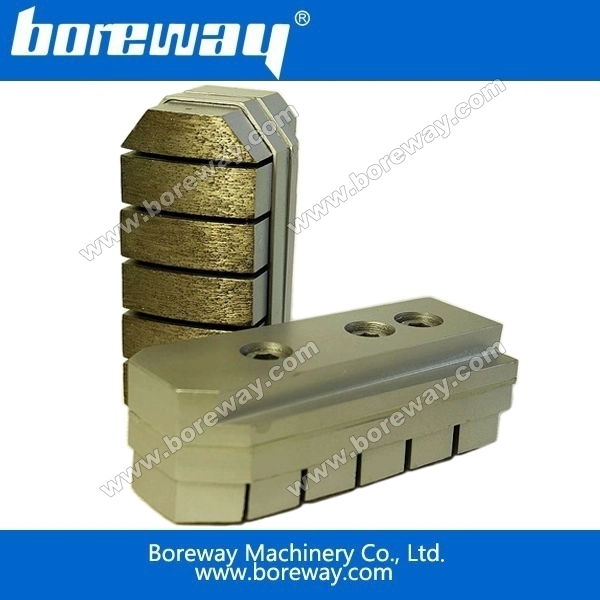

Boreway brazed diamond fickert
- Model Number: BW-BDF-002
- Type: Wet Use
- Specification: 140mm*56mm*15mm or 170mm*56mm*15mm
- Segment Width: 3.5mm to 5.5mm
- Normal grit: 36#,46#,60#,80#,100#,120#,140#,180#,240#,320#
- Applications: Boreway brazed diamond fickert is wet use for grinding granite,marble,quartz and ceramic.
- Machine: Grinding machine for diamond fickert.
- Industry: Diamond tools
- Welding method: Brazed
- Advantage: Good sharpness and Long lifespan.
Introduction:
Brazed diamond fickerts are widely used for grinding slabs of granite,marble,quartz and ceramic

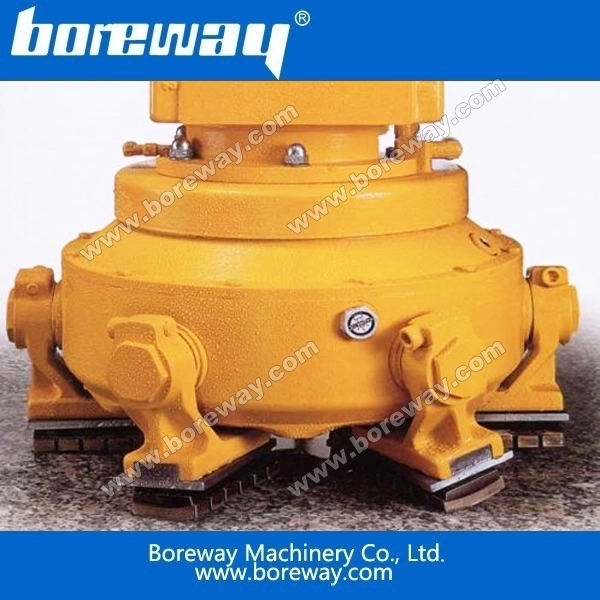

from coarse to fine. These fickerts are used on automatic continuous polishing machines with high
efficiency and long lifespan,cost lower than magnesia grinding blocks.
Features:
1.Segmented brazed construction allows better debris removal and better cooling.
2.It’s sharpness can reduce the pressure of grinding head,therefor reduce machines abrasion.
3.It‘s super sharpness can improve transmission speed of convey belt and improve the production efficiency.
4.It can bring 10 degree more in stone high glossiness,without scratch or break slates while grinding.
Specifications:
The followings are the normal specifications of our brazed diamond fickert:
|
Product Name |
Model |
Specifications |
Normal Grit |
Applications |
|
Brazed Diamond Fickert |
T140 |
140*56*15(20) |
36# 46# 60# 80# 100# 120# 140# 180# 240# 320# |
Granite Marble Quartz Ceramic
|
|
T170 |
170*56*15(20) |
The above specifications are for reference, other specifications can be ordered by customers.
Quality: Good quality,Premium.
