Diamond Wire Saw Diameter 11mm Rubber Rope Saw For Stone Cutting Saw Profiling And Squaring Abrasive Tool
- Diameter:11mm
- Length: 5meters
- Weight: 2Kg
- Beads number: 28-41
- Application: Stone and concrete

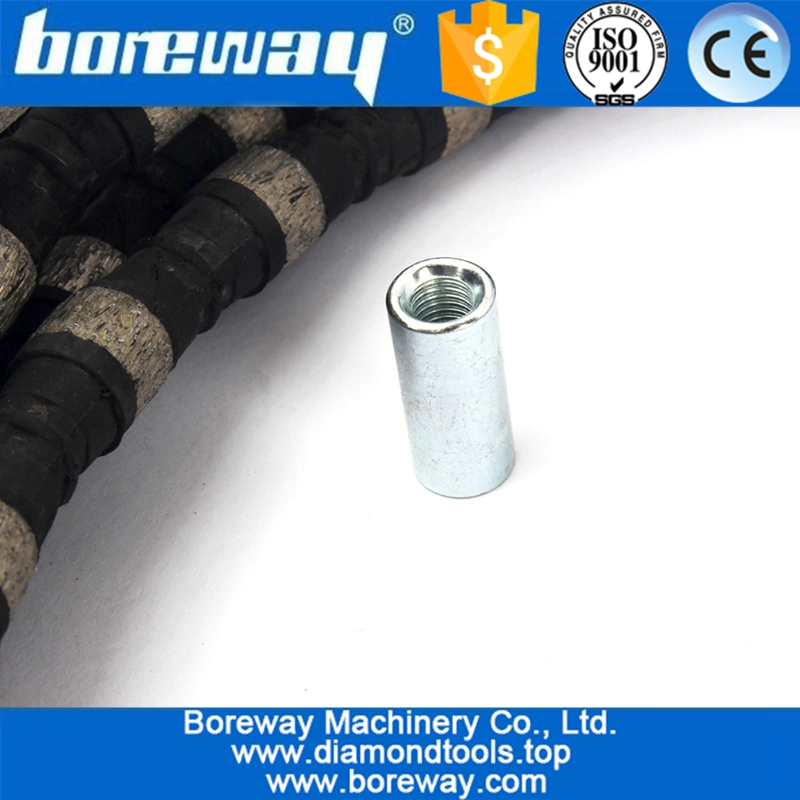

- Connecting materials: Rubber, plastic, spring
| Introduction: |
Diamond rubber wire saw mainly use for cutting stone block and quarry, these tools have a fast cutting speed and suitable for cutting large materials. These diamond wire saw beads standard diameter is 7.3-11.5 mm, process is sintered, electroplated and vacuum brazed, 1 meter has 28-41 beads, and the rope is made of rubber, plastic, spring and steel wires. Compared with common circular saw blades, diamond wire saw has the advantage of cutting very large and irregular materials and even cutting under water, which greatly saves costs and reduces risks.
| Feature: |
1.Universal wet cutting wire for various kinds of stone.
2.Extra aggressive on marble and limestone quarrying,block squaring,profiling and slab cutting.
3.Could be used wet or dry,best with wet cutting for tool lifespan concern.
| Specification: |
The followings are the normal specifications of our diamond vacuum brazed wire and beads:
|
Diameter (mm) |
Bead Length (mm) |
Bead Number (pcs/M) |
Grit (#) |
Reinforcement |
Applications |
|
11.0 |
12.5/11.0 |
28/30/32 |
30#~40# |
Spring/Plastic/Rubber |
Quarrying/Block Squaring |
|
10.0 |
12.0 |
28/30/32 |
30#~40# |
Spring/Plastic/Rubber |
Quarrying/Block Squaring |
|
8.8 |
11.0 |
28/30/32 |
30#~40# |
Spring/Plastic/Rubber |
Stone Profiling |
|
7.2 |
9.0 |
28/30/32 |
30#~40# |
Spring/Plastic/Rubber |
Slab Cutting |
The above specifications are for reference, other specifications can be ordered by customers.
| Picture: |

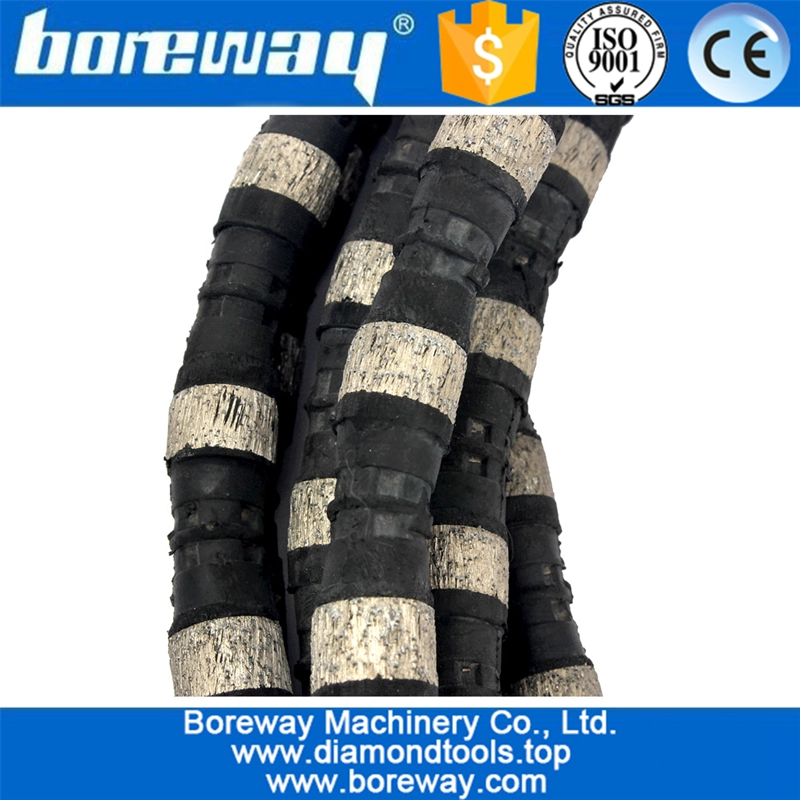

Diamond Wire Saw Diameter 11mm Rubber Rope Saw For Stone Cutting Saw Profiling And Squaring Abrasive Tool
