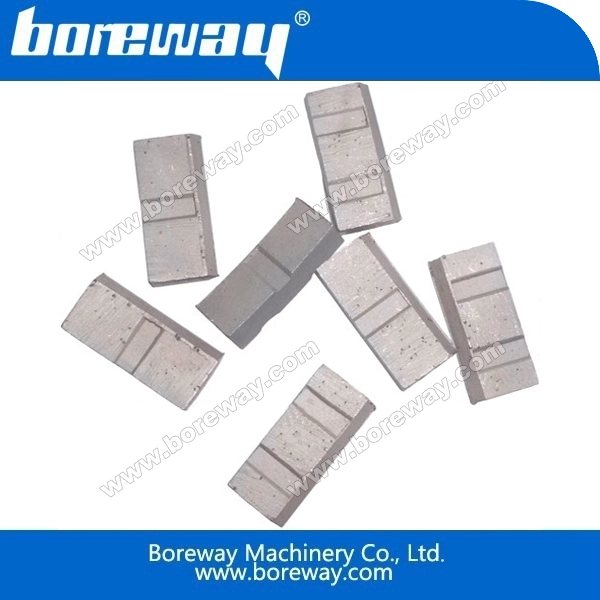

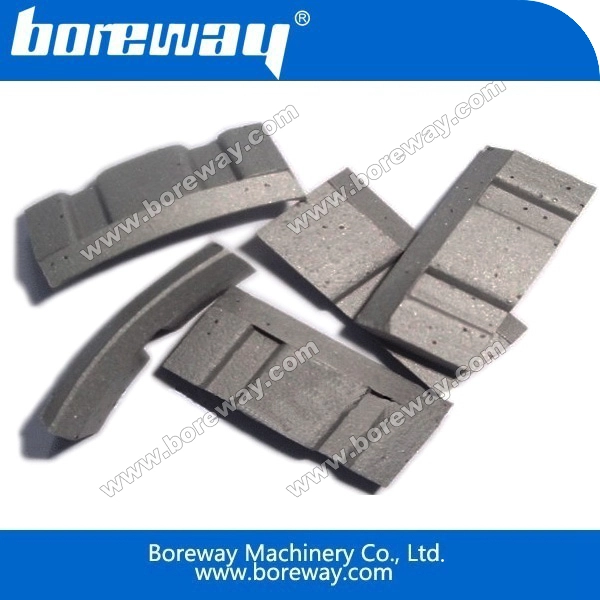

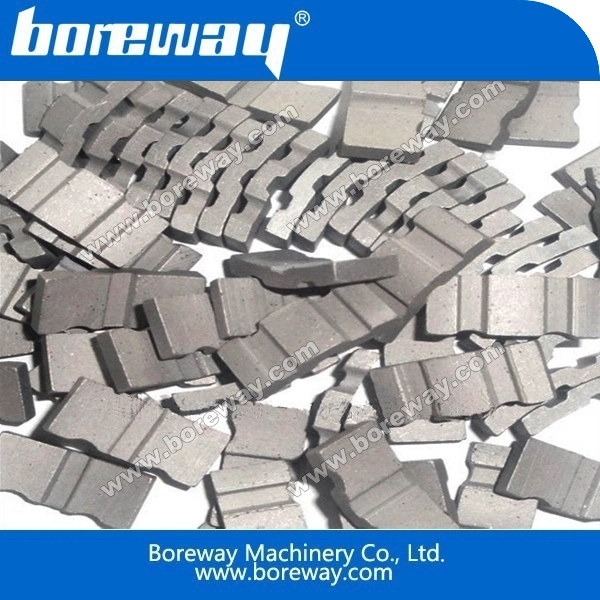

Turbo segment for stone diamond core drill bit
- Model Number: BW-TSSDCDB-002
- Type: Wet Use
- Diameter: 32mm to 127mm
- Segment number: 4 to 11
- Applications: Boreway turbo segment for stone diamond core drill bit is welding for core drill bit for drilling granite and other hard stone etc.
- Machine: Welding machine and high-frequency welding machine.
- Industry: Diamond drilling tools
- Welding method: Sinter welding
- Advantage: Good sharpness and Long lifespan.
Introduction:
Turbo segments for stone diamond core drill bits are suitable for smooth and fast drilling kinds of granite and many other hard stone. Under same bond conditions, the drilling speed of this turbo segments is much faster than normal flat segments, and all time the drilling speed is same.
Features:
1.Turbo segment provide higher drilling efficiency.
2.Wet or dry drilling.
3.Long lifespan and stable performance.
Specifications:
The followings are the normal specifications of our turbo segment for stone diamond core drill bit:
|
Product Name |
Diameter |
Segment Width |
Segment No. |
Applications |
|
Turbo Segment For Stone Diamond Core Drill Bit |
1.25"(32mm) |
16x3.0x10 |
4 |
Granite
Other Hard Stone |
|
1.38"(35mm) |
16x3.0x10 |
4 |
||
|
1.50"(38mm) |
16x3.0x10 |
5 |
||
|
1.63"(42mm) |
16x3.0x10 |
5 |
||
|
1.75"(45mm) |
16x3.0x10 |
6 |
||
|
1.88"(48mm) |
16x3.0x10 |
6 |
||
|
2"(52mm) |
16x3.0x10 |
7 |
||
|
2.25"(57mm) |
24x3.5x11 |
5 |
||
|
2.50"(63mm) |
24x3.5x11 |
6 |
||
|
2.75"(70mm) |
24x3.5x11 |
7 |
||
|
3"(76mm) |
24x3.5x11 |
8 |
||
|
3.25"(82mm) |
24x3.5x11 |
9 |
||
|
3.50"(89mm) |
24x3.5x11 |
10 |
||
|
4"(102mm) |
24x3.5x11 |
10 |
||
|
4.25"(108mm) |
24x3.5x11 |
11 |
||
|
4.50"(114mm) |
24x3.5x11 |
11 |
||
|
4.75"(120mm) |
24x3.5x11 |
11 |
||
|
5"(127mm) |
24x3.5x11 |
11 |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Normal,Good quality,Premium.
