Home > Product > Stone Grinding & Polishing Tools > Diamond Finger Bits > Supply 30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G
Supply 30# CNC Diamond Finger Bit For Granite D25*40T*1/2”GSupply 30# CNC Diamond Finger Bit For Granite D25*40T*1/2”GSupply 30# CNC Diamond Finger Bit For Granite D25*40T*1/2”GSupply 30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G

Supply 30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G

  • Model Number:BW-DRB-01-01-08
  • Type:Wet Use
  • Diameter:25mm
  • Length size:40mm
  • Connection:1/2G"
  • Advantage:High efficiency and long lifespan.
  • Machine:CNC machine,radial arm machine
  • Applications:30# CNC Diamond Finger Bit For Granite are used for cut granite,engineered stone and marble and other material

Introduction:
30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G are usually use after diamond core drill bits,

fast removing dust,diamond sink wheel.

They are ideal for fast stock removal as well as truing up saw lines, which is designed to cut granite, engineered

stone and marble,counter tops, kitchen tops and basins.

Usually mounted on CNC or Radial Arm machines, for hole grinding, anchor and blind hole.
Center water feed holes in each bit.
Wet use only.

Feature:
1.Faster Speed and Lasting longer
2. Less Noise and Low Ampere

Specifications:
The following are the normal specifications about 30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G:

Diameter

Bore (mm)

Segment Length

Segment No.

20mm (3/4")

1/2 Gas
(Male Thread)

40mm
45mm
50mm
60mm

4-6pcs

25mm (1")

30mm (1-1/4")

35mm (1-3/8")

40mm (1-5/8")

50mm (2")

60mm (2-3/8")

The above specifications are for reference, other specifications can be ordered by customers.

Picture:

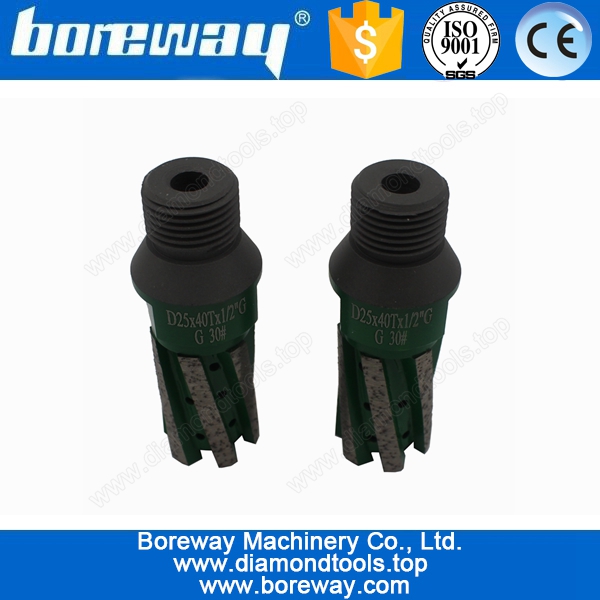

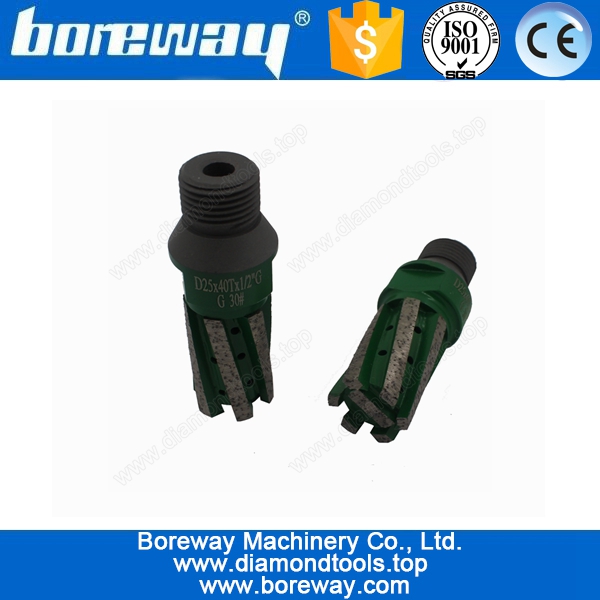

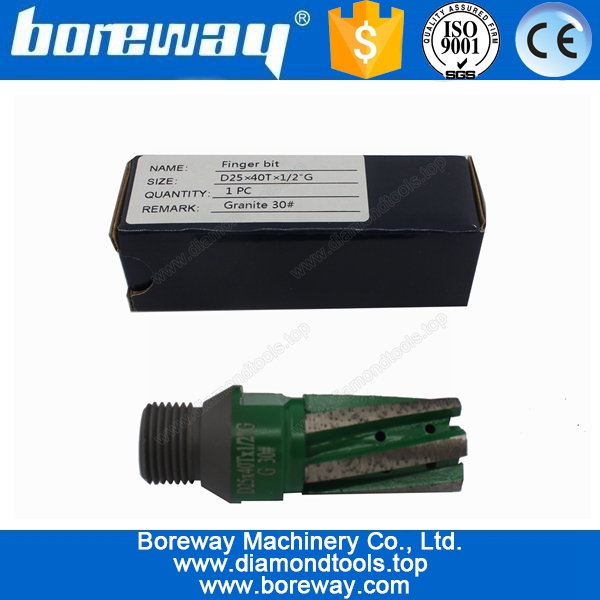

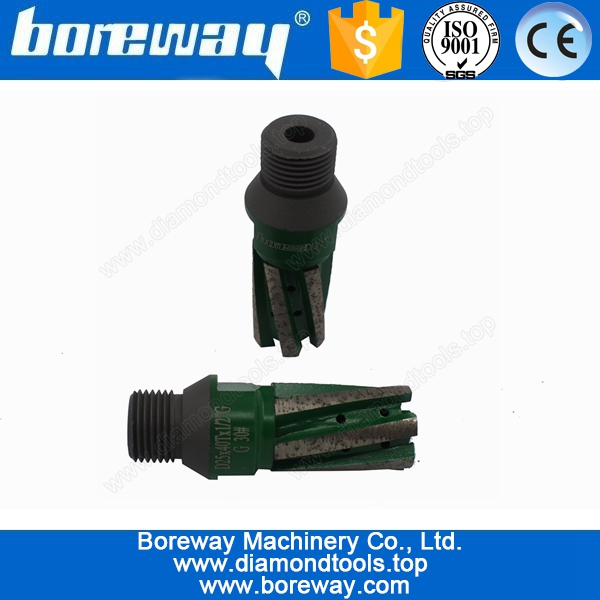

30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G

30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G
