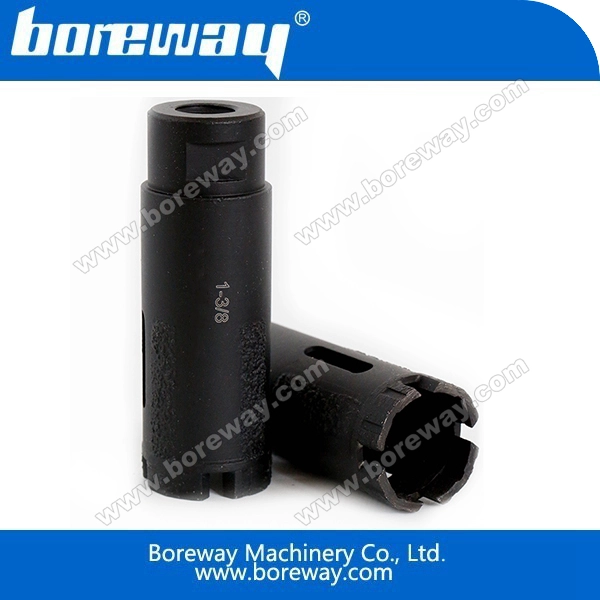

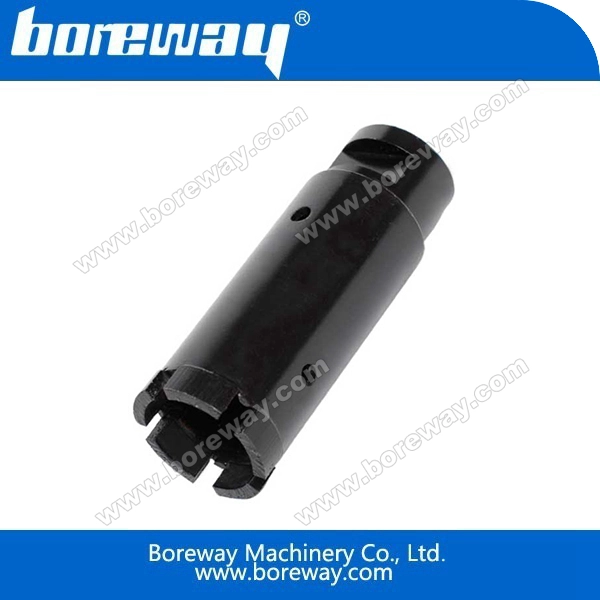

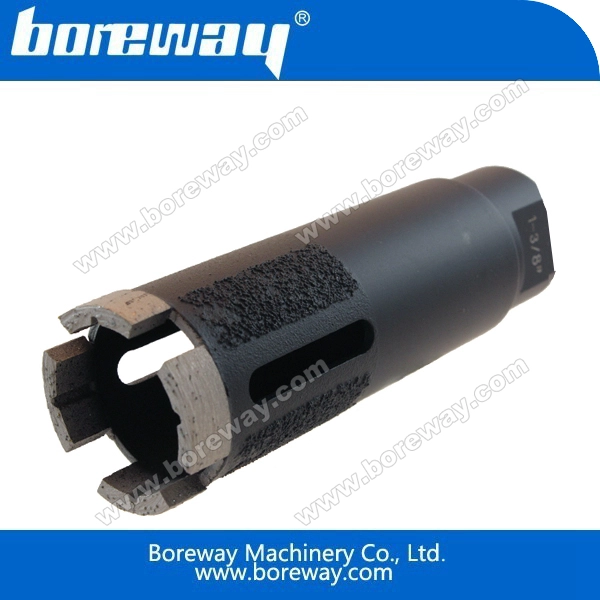

Diamond turbo segmented core drill bit

  • Model: BW-TSCB-002
  • Type: wet and dry use
  • Diameter: 32 mm to 127 mm
  • Section width: 3.0 to 3.5mm

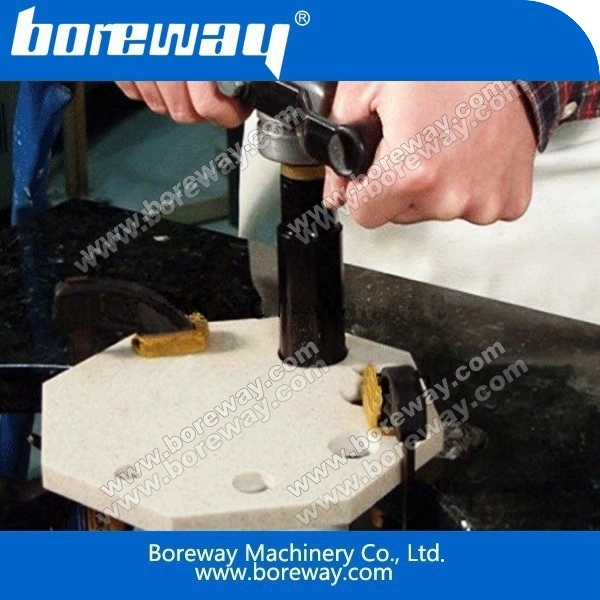

  • Applications: Boreway turbo segmented core drill bit used on hand-held drilling machine for drilling granite,marble,artifical stone and quartz.etc.
  • Accessories: Hand-held drilling machine and other drilling machine.
  • Industry: Diamond drilling tools
  • Welding methods: silver welding
  • Advantages: Good sharpness and long lifespan.

Diamond turbo segmented core bit

Introduction:

Conventional turbine-shaped diamond drill bit, drill diameter 32-127mm, which makes high density

drilling smoother, longer life, suitable for smooth, fast drilling in granite and other hard stone and concrete.

Tested under the same other conditions such as drill rotational speed, the turbine-like drill bit drilling

speed was much faster than ordinary drill bit.
Features:

1. Our drill bit using diamond flakes and metal carcass (Ti + Cr + Ni + Co, etc.) to form chemical bonds, can reduce threshing, raise the blade, and prolong life.

2. Variable single diamond drilling to grinding and edge (high intensity diamond) combined to optimize drilling performance;

3. The blade sharpness is good, drilling speed, high efficiency;

The wear coefficient is good, long life, high overall cost!

Note:Requires the operator to add some cooling water, and water flow should be large, it has a better cooling effect, in order to improve the life of the drill, reduce costs!

Specification:

Diamond turbo segmented core bit:

The following size is Boreway Diamond turbo segmented core bit:

product name

Diameter

Segment Size

Segment Number

Broadway diamond turbo segmented core drilling bit

1.25 "(32mm)

16x3.0x10

4

1.38 "(35mm)

16x3.0x10

4

1.50 "(38mm)

16x3.0x10

5

1.63 "(42mm)

16x3.0x10

5

1.75 "(45mm)

16x3.0x10

6

1.88 "(48mm)

16x3.0x10

6

2 "(52mm)

16x3.0x10

7

2.25 "(57mm)

24x3.5x11

5

2.50 "(63mm)

24x3.5x11

6

2.75 "(70mm)

24x3.5x11

7

3 "(76mm)

24x3.5x11

8

3.25 "(82mm)

24x3.5x11

9

3.50 "(89mm)

24x3.5x11

10

4 "(102mm)

24x3.5x11

10

4.25 "(108mm)

24x3.5x11

11

4.50 "(114mm)

24x3.5x11

11

4.75 "(120mm)

24x3.5x11

11

5 "(127mm)

24x3.5x11

11

The price marked for reference, specific details, please contact QQ or telephone. For some unconventional drills, we also can be customized according to customer specific requirements for processing.

Diamond turbo segmented core drill bit:
