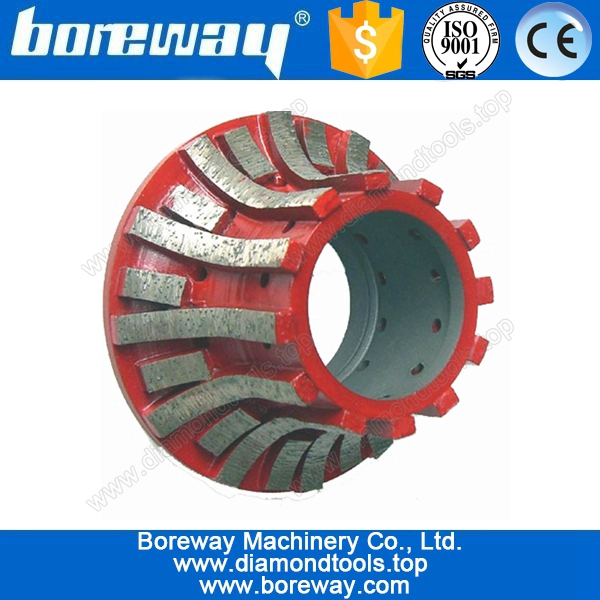

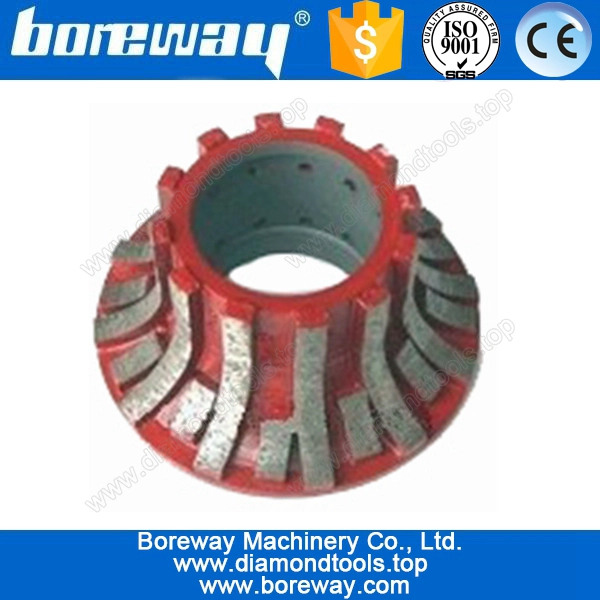

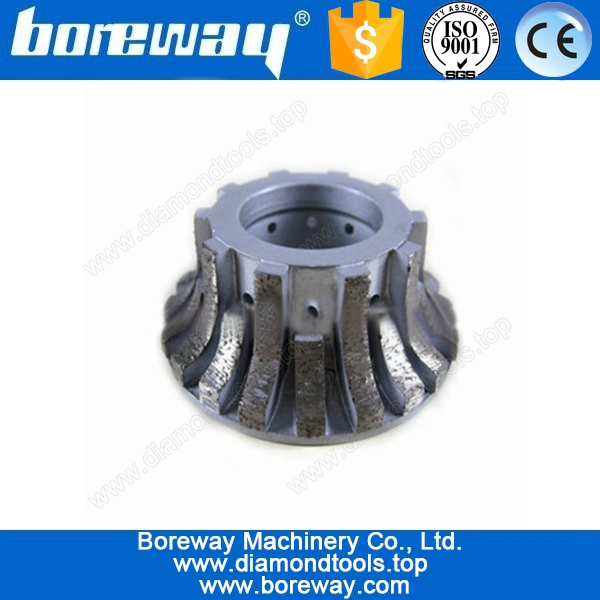

CNC concrete router bit,diamond router bit,CNC router bit,CNC router cutting bit

Model Number: BW-CRB-A30
Type: Wet Use
Diameter: 50mm to 125mm
Segment thickness：30mm
Connection: 22mm or 35mm or 1/2"Gas
Applications: CNC A30 concrete router bits are used for CNC machine,automatic processing the granite,marble,other stones and the counter.
Advantage: Good sharpness and Long lifespan.

Introduction:

These diamond router bits for stone are used for CNC machine,automatic processing the granite,

marble,other stones and the counter.Their merits are high efficiency of production,exact figure.

Using sequence: from rough grit to fine, finally polishing.

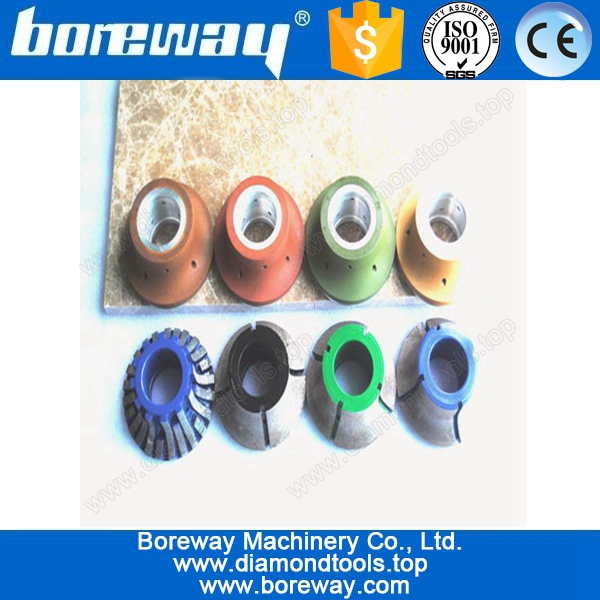

The following are different shapes design , including : A, B, D, E, F, G, H, I, L, M, N, O, P, Q, S, T, U, V, WF, DD, DC

Features:

1.Different shapes and sizes are available.

2.Good balance and stable performance.

3.Sintered segment is aggressive for easy and quick stock removal.

Specifications:

The followings are the normal specifications of our diamond segment router bit:

Product Name	Position	Grit	Diameter	Thickness	Stone Shape	Spindle
Diamond Segment Router Bit	Pos1	30/40#	50-125mm	20mm 30mm 40mm 50mm	A, B, D, E,F, G, H, I, L, M,N, O,P,Q,S,T,U, V,WF,DD,DC etc.	M8 M10 M14 1/2 "Gas 22mm 35mm
	Pos2	40/50#
	Pos3	80/100#
	Pos4	170/200#
	Pos5	400#
	Pos6	600#
	Pos7	1000#
	Pos8	Optional

The above specifications are for reference, other specifications can be ordered by customers.
