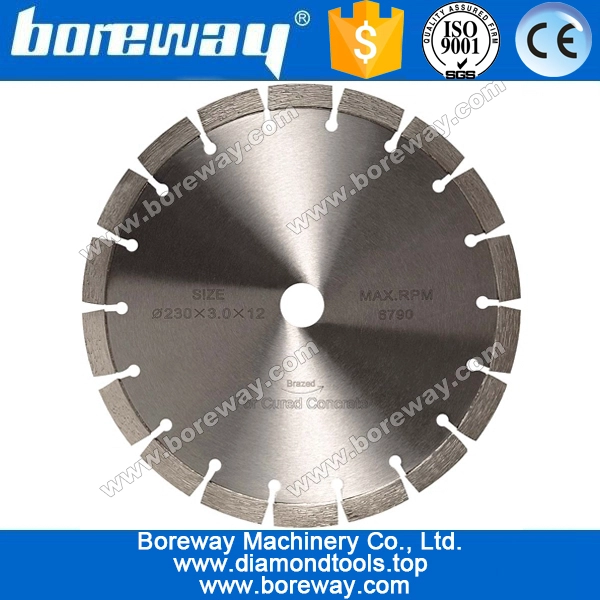

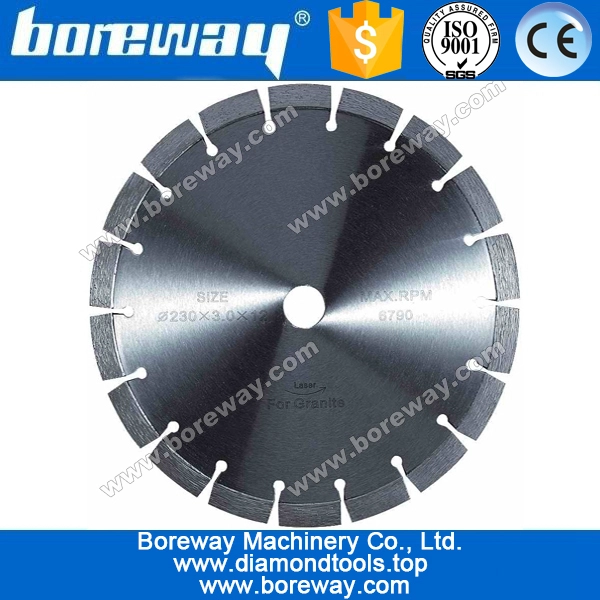

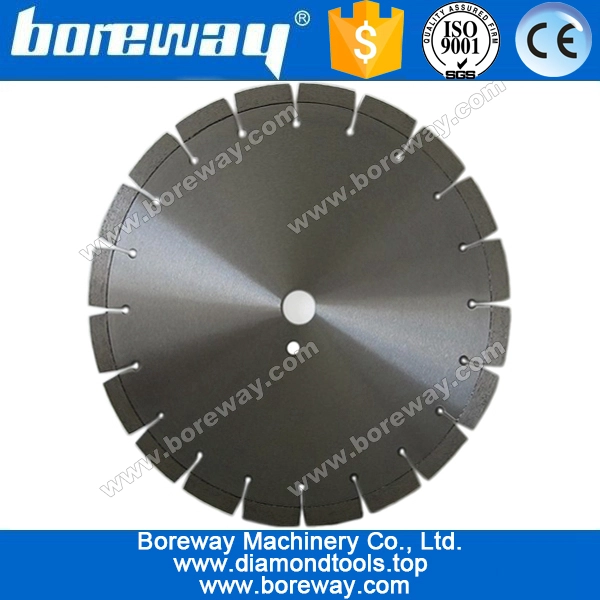

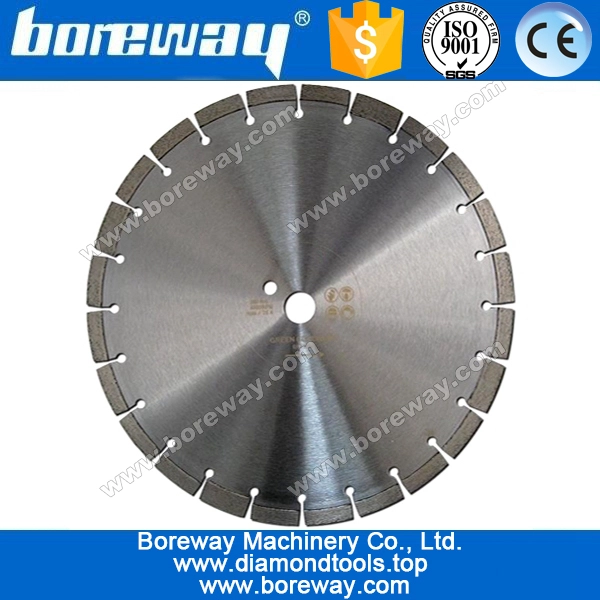

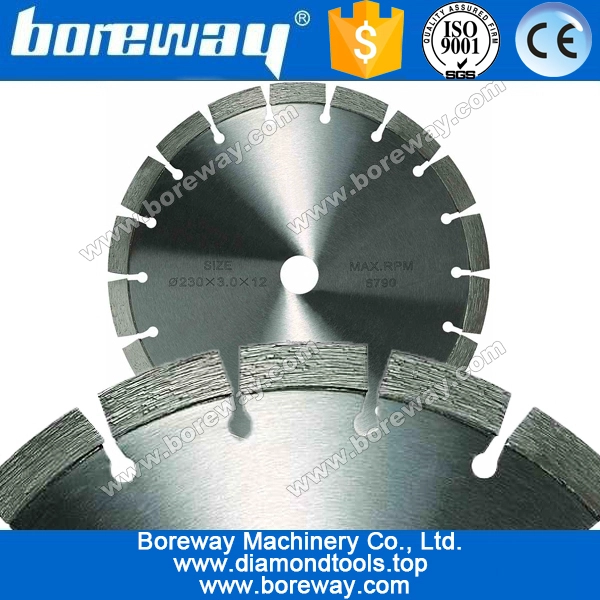

Boreway Diamond Laser Flat Segment Blades
- Model Number: BW-DLFSB-001
- Type: Wet Use
- Diameter: 105mm to 457mm
- Segment Width: 2.2mm to 4.0mm
- Segment Height: 8.0mm to 10mm
- Segment number: 8 to 32
- Machine: Bridge cutting machine and other large cutting machine.
- Industry: Diamond cutting tools
- Welding method: Laser welding
- Advantage: Good sharpness and long lifespan.
- Applications: Boreway diamond laser flat segment blades are wet use for cutting masonry brick and concrete.
Introduction:
These diamond laser flat segment blades are mainly used for cutting reinforced concrete,brick,
masonry or asphalt,green concrete,sandstone etc.
Features:
1.Universal dry and wet cutting blades.
2.Fast and smooth cutting,high performance.
3.Wide notch(U gullet) blades are suitable for asphalt green concrete and sandstone.
4.While using specially designed holes in the core improve cooling of the blade and reduce noise.
Specifications:
The followings are the normal specifications of our diamond laser flat segment blades:
|
Product Name |
Outer Diameter |
Segment Width |
Arbor |
Segment Height |
Segment Number |
Applications |
||
|
Diamond Laser Flat Segment Blade |
inches |
mm |
inches |
mm |
mm |
mm |
pcs |
Masonry Brick Reinforced Concrete Asphalt |
|
4’’ |
105 |
0.085’’ |
2.2 |
16/20 22.23 25.4/50 |
8mm |
8 |
||
|
4.5’’ |
115 |
0.085’’ |
2.2 |
8mm |
9 |
|||
|
5’’ |
127 |
0.085’’ |
2.2 |
8mm |
10 |
|||
|
6’’ |
152 |
0.095’’ |
2.4 |
8mm |
12 |
|||
|
7’’ |
178 |
0.095’’ |
2.4 |
8mm |
14 |
|||
|
8’’ |
203 |
0.110’’ |
2.8 |
8mm |
16 |
|||
|
9’’ |
229 |
0.110’’ |
2.8 |
8mm |
18 |
|||
|
10’’ |
254 |
0.110’’ |
2.8 |
10mm |
17 |
|||
|
12’’ |
305 |
0.120’’ |
3.0 |
10mm |
21/18 |
|||
|
14’’ |
355 |
0.125’’ |
3.2 |
10mm |
24/21 |
|||
|
16’’ |
406 |
0.140’’ |
3.6 |
10mm |
28/24 |
|||
|
18’’ |
457 |
0.155’’ |
4.0 |
10mm |
32/28 |
|||
The above specifications are for reference, other specifications can be ordered by customers.
Note: Wide notch configuration all blades 12’’ and above.
